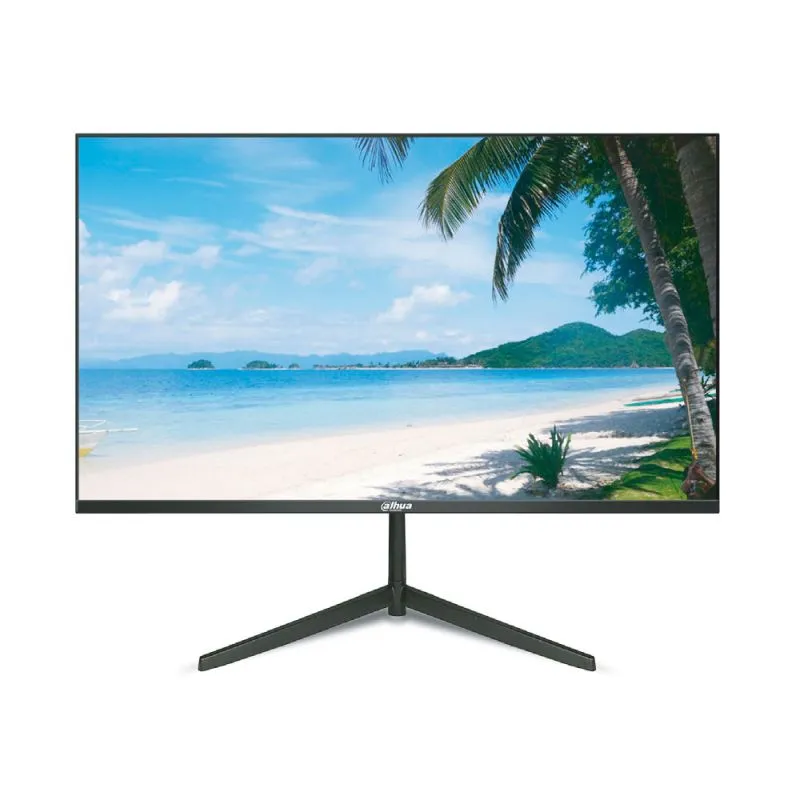

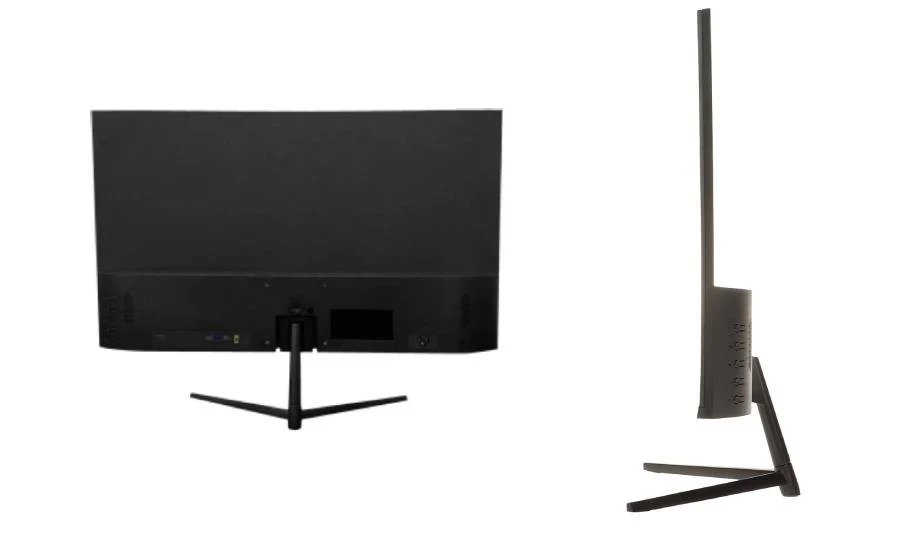

– Model : DHI-LM24-B200
* Display :
– Screen Size : 23.8″
– Aspect Ratio : 16:9
– Resolution : 1920×1080 (FHD)
– Backlight : LED
– Brightness/Luminance : 250 cd/㎡
– Contrast : 3000:1
– Display Color : 16.7M(8bit)
– Viewing Angle(H/V) : 178°(H)/178°(V)
– Response time(typ.) : 5ms
– Refresh Rate : Max.75Hz , Typ.60Hz
* Signals :
– Input : VGA×1, HDMI×1
– Output : Audio Out x1
* General :
– Power Supply : AC100~240V, 50/60 Hz
– Consumption (Standard) : 25W
– Consumption (Standby) : ≤0.5W
– Type : Internal
– Net Weight : 3kg (6.6lb)
– Gross Weight : 4kg (8.8lb)
– Bezel Width : 3.8mm(U), 3.7mm(R/L), 11mm(B)
– Wall Mount : 75×75mm (3.0″×3.0″)
– Dimension without standard (W×H×D) : 541x317x42mm (21.3“x12.5”x1.7”)
– Package(W×H×D) : 613x441x112mm (24.1“x17.4”x4.4“)
– Work Environment : Temperature {0℃~40℃ (32°F~104°F)} / Humidity (10%~85%)
* Accessory :
– Standard : HDMI cable, power cable, base
– Optional : Gas spring desk bracket
